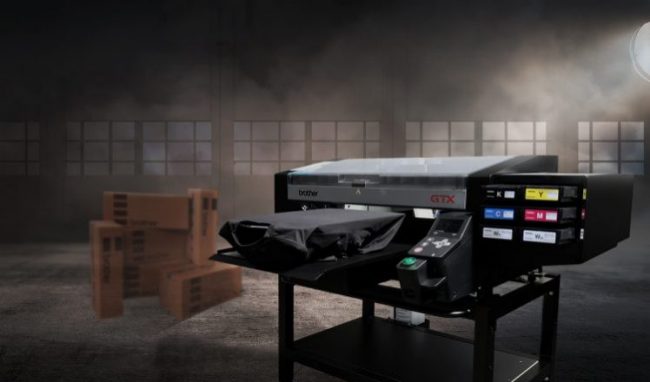

Print like you never have before with the next generation in direct to garment printers, GTX. With an accelerated print speed, seamless design, lower maintenance, and a robust amount of amazing features, GTX takes conventional DTG printing to the next level.
Overview
Brother industrial Printheads – a new generation for amazing speed.
Innobella Textile – the new Brother ink for a wider colour gamut and brighter colours! Environmental friendly ink supply system.
Special ink circulation system and several new features to reduce maintenance costs.
Wide range of proven platen up to 40,64 x 53,54cm printing area and many more platen types for different solutions.
Easy-to-use, intuitive user interface with Image Preview.
Network and USB connection for full industrial production integration.
Printing Method | Direct Inkjet Garment Printer |
Machine Size | 55“(W) x 51“(D) x 21“(H) (1400mm x 1290mm x 535mm) |
Machine Weight | 260lb (approx.118kg) |
Max. Printing Area | 16“ x 21“ (40,64cm x 53,54cm) |
Plate Delivered | 14“ x 16“ (35,54cm x40,65cm) |
Ink Type | Water based pigment ink (200 and 500ml pouches available) |
Ink Color | CMYKW |
Printhead type | On demand piezo head |
Number of Printheads | 2 |
Printhead resolution | 1200 dpi x 1200 dpi |
Print Mode | Single or multiple for CMYK. Underbase and highlight for white |
Environment | Operating conditions: 50°F(10°C)to 95°F(35°C) Humidity: 20-85% RH |
Printing conditions | 64°F(18°C)to 86°F(30°C) Humidity: 35-85% RH |
Data output | Printer driver (USB, File output) |
Power supply | AC 100V-240V, 50/60Hz |
Power consumption | 0.8A (average) (Reference: 0.3A (during circulation)) |
Ink cure | Heat press machine can be used at 356°F (180°C) and 35 seconds duration. |
Conveyor oven is recommended to support high productivity of the printer at 320°F (160°C) and 3.5 minutes duration. Time and temp. may vary depending on which manufacturer‘s dryer is used. | |
Pre-treatment | Before printing, apply using a manual or automatic device and dry using a heat-press machine according to manufacturer instruction. |
Pre-treatment is necessary for white ink. | |
Software | |
OS | Windows 7 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), Windows 10 (32 bit/64 bit), Mac OS X v10.10.x |
Interface | USB2.0, LAN (10 BASE-T, 100 BASE-TX), USB Flash Memory (Under 32GB, FAT32 format) |
Driver operating conditions | 2GHz CPU, 4GB RAM |
Display resolution | XGA (1024×768) |
Recommended PC applications | CorelDRAW® X6/X7, Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC, Adobe® Photoshop Elements 12/13. |
